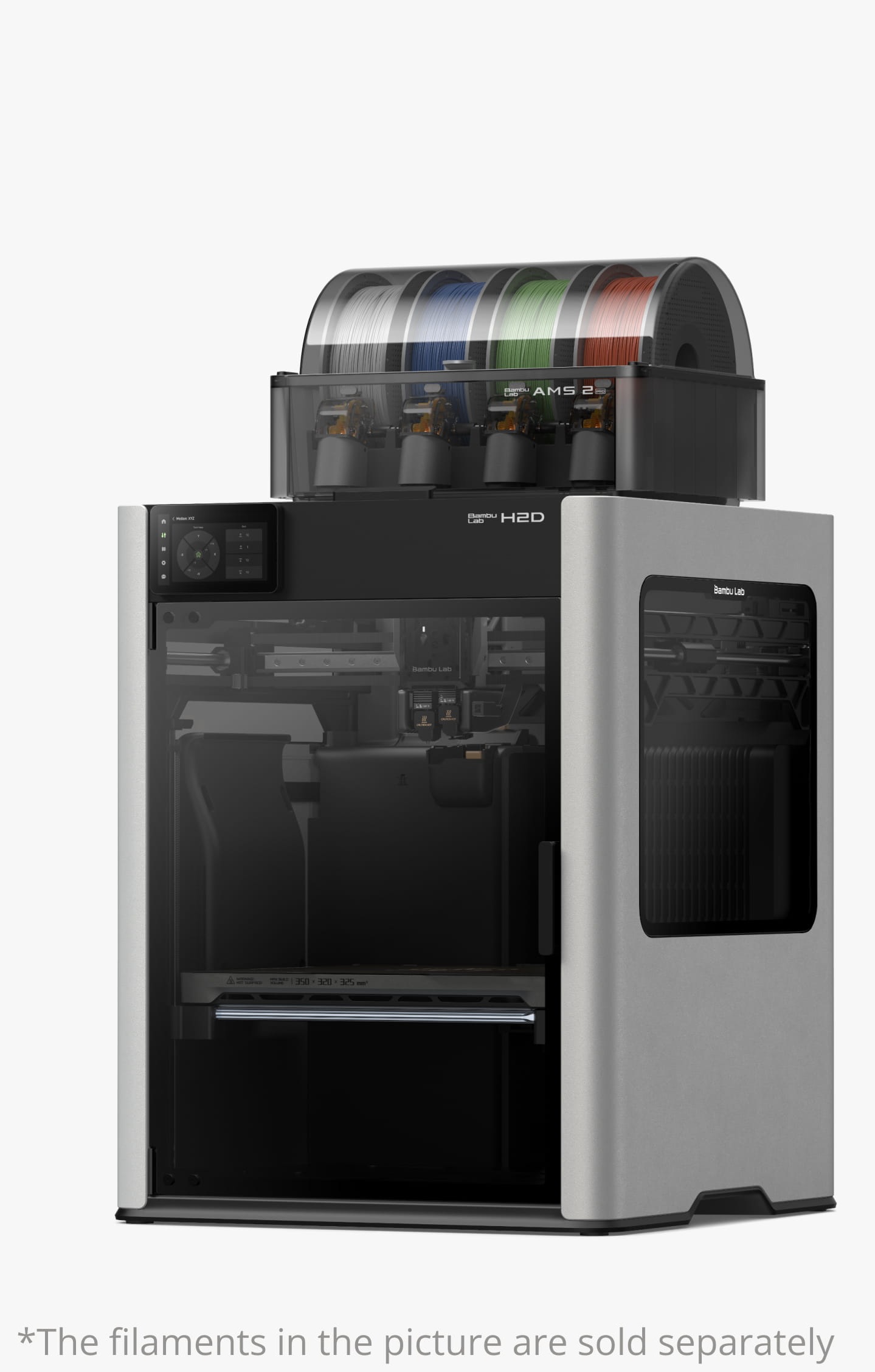

Upgrade your 3D printing with Bambu Lab H2D, a dual-head 3D printer combining fast and efficient multi-color printing, laser engraving, and digital cutting in one platform.
Bambu Lab H2D – Technical Specifications
Printing Technology
|
Fused Deposition Modeling
|
Body
|
Build Volume (W*D*H)
|
Single Nozzle Printing: 325mm*320mm*325mm Dual Nozzle Printing: 300mm*320mm*320mm Total Volume for Two Nozzles: 350mm*320mm*320mm
|
|
Chassis & Shell
|
Aluminum, Steel, Plastic and Glass
|
|
Laser Safety Windows
|
Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
|
|
Air Assist Pump
|
Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit
|
Physical Dimensions
|
Physical Dimensions
|
492mm*514mm*626mm
|
|
Net Weight
|
31 kg
|
Toolhead
|
Hotend
|
All Metal
|
|
Extruder Gear
|
Hardened Steel
|
|
Nozzle
|
Hardened Steel
|
|
Max Nozzle Temperature
|
350 °C
|
|
Included Nozzle Diameter
|
0.4 mm
|
|
Supported Nozzle Diameter
|
0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
|
|
Filament Diameter
|
1.75 mm
|
|
Extruder Motor
|
Bambu Lab High-precision Permanent Magnet Synchronous Motor
|
Heatbed
|
Supported Build Plate Type
|
Textured PEI Plate, Smooth PEI Plate
|
|
Max Heatbed Temperature
|
120 ℃
|
Speed
|
Max Speed of Toolhead
|
1000 mm/s
|
|
Max Acceleration of Toolhead
|
20,000 mm/s²
|
|
Max Flow for Hotend (Standard Flow Hotend)
|
40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
|
|
Max Flow for Hotend (Optional High Flow Hotend)
|
65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
|
Chamber Temperature Control
|
Active Chamber Heating
|
Supported
|
|
Max Temperature
|
65 °C
|
Air Purification
|
Pre-filter Grade
|
G3
|
|
HEPA Filter Grade
|
H12
|
|
Activated Carbon Filter Type
|
Granulated Coconut Shell
|
Cooling
|
Part Cooling Fan
|
Closed Loop Control
|
|
Auxiliary Part Cooling Fan
|
Closed Loop Control
|
|
Chamber Heat Circulation Fan
|
Closed Loop Control
|
|
Cooling Fan for Hotend
|
Closed Loop Control
|
|
Main Control Board Fan
|
Closed Loop Control
|
|
Chamber Exhaust Fan
|
Closed Loop Control
|
Supported Filament Type
|
PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS-CF/GF
|
Supported
|
Sensor
|
Live View Camera
|
Built-in; 1920*1080
|
|
Nozzle Camera
|
Built-in; 1920*1080
|
|
BirdsEye Camera
|
Built-in; 3264*2448 （Equipped with Laser Edition)
|
|
Toolhead Camera
|
Built-in; 1920*1080
|
|
Door Sensor
|
Supported
|
|
Filament Run Out Sensor
|
Supported
|
|
Filament Tangle Sensor
|
Supported
|
|
Filament Odometry
|
Supported with AMS
|
|
Power Loss Recovery
|
Supported
|
Electrical Requirements
|
Voltage
|
100-120 VAC / 200-240 VAC, 50/60 Hz
|
|
Max Power*
|
2200 W@220 V / 1320 W@110 V
|
|
Please purchase the version corresponding to your region’s voltage.
|
Working Temperature
|
10 °C–30 °C
|
Electronics
|
Touchscreen
|
5-inch 720*1280 Touchscreen
|
|
Storage
|
Built-in 8 GB EMMC and USB Port
|
|
Control Interface
|
Touchscreen, mobile App, PC App
|
|
Neural Processing Unit
|
2 TOPS
|
Software
|
Slicer & Software
|
Bambu Studio, Bambu Suite, Bambu Handy Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
|
|
Supported Operating System
|
MacOS, Windows
|
Wi-Fi
|
Operating Frequency
|
2412-2472 MHz, 5150-5850 MHz (FCC/CE) 2400-2483.5 MHz, 5150-5850 MHz (SRRC)
|
|
Wi-Fi Transmitter Power (EIRP)
|
2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
|
|
Wi-Fi Protocol
|
IEEE 802.11 a/b/g/n
|
10W & 40W Laser Module
|
Laser Type
|
Semiconductor Laser
|
|
Laser Wavelength
|
Engraving Laser: 455 nm ± 5 nm Blue Light Height Measuring Laser: 850 nm ± 5 nm Infrared Light
|
|
Laser Power
|
10 W ± 1 W; 40 W ± 2 W
|
|
Laser Spot Dimension
|
10W: 0.03 mm * 0.14 mm; 40W: 0.14 mm * 0.2 mm
|
|
Working Temperature
|
0 °C–35 °C
|
|
Max Engraving Speed
|
10W: 400 mm/s; 40W: 1000 mm/s
|
|
Max Cutting Thickness
|
10W: 5 mm; 40W: 15mm (Basswood Plywood)
|
|
Laser Safety Class for Laser Module
|
Class 4
|
|
Overall Laser Safety Class*
|
Class 1
|
|
Engraving Area
|
10W: 310 mm * 270 mm; 40W: 310 mm * 250 mm
|
|
XY Positioning Accuracy
|
< 0.3 mm
|
|
Z Height Measuring Method
|
Micro Lidar
|
|
Z Height Measuring Accuracy
|
± 0.1 mm
|
|
Flame Detection
|
Supported
|
|
Temperature Detection
|
Supported
|
|
Door Sensor
|
Supported
|
|
Laser Module Installation Detection
|
Supported
|
|
Safety Key
|
Included
|
|
Ventilation Pipe Adapter Outer Diameter
|
100 mm
|
|
Supported Material Type
|
Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
|
Cutting Module
|
Cutting Area
|
300*285 mm²
|
|
Drawing Area
|
300*255 mm²
|
|
Supported Pen Diameter
|
10.5 mm-12.5 mm
|
|
Cutting Mat Type
|
LightGrip and StrongGrip Cutting Mats
|
|
Blade Type
|
45°*0.35 mm
|
|
Blade Pressure Range
|
50 gf-600 gf
|
|
Max Cutting Thickness
|
0.5 mm
|
|
Blade and Pen Recognition
|
Supported
|
|
Cutting Mat Type Detection
|
Supported
|
|
Supported Image Type
|
Bitmap and Vector Images
|
|
Supported Material Type
|
Paper, vinyl, leather, and more
|
* To ensure the heatbed quickly reaches the needed temperature, the printer will maintain maximum power for no more than 3 minutes. * When the printer’s protection is complete and properly working, the printer and laser module work as a class 1 laser product.
