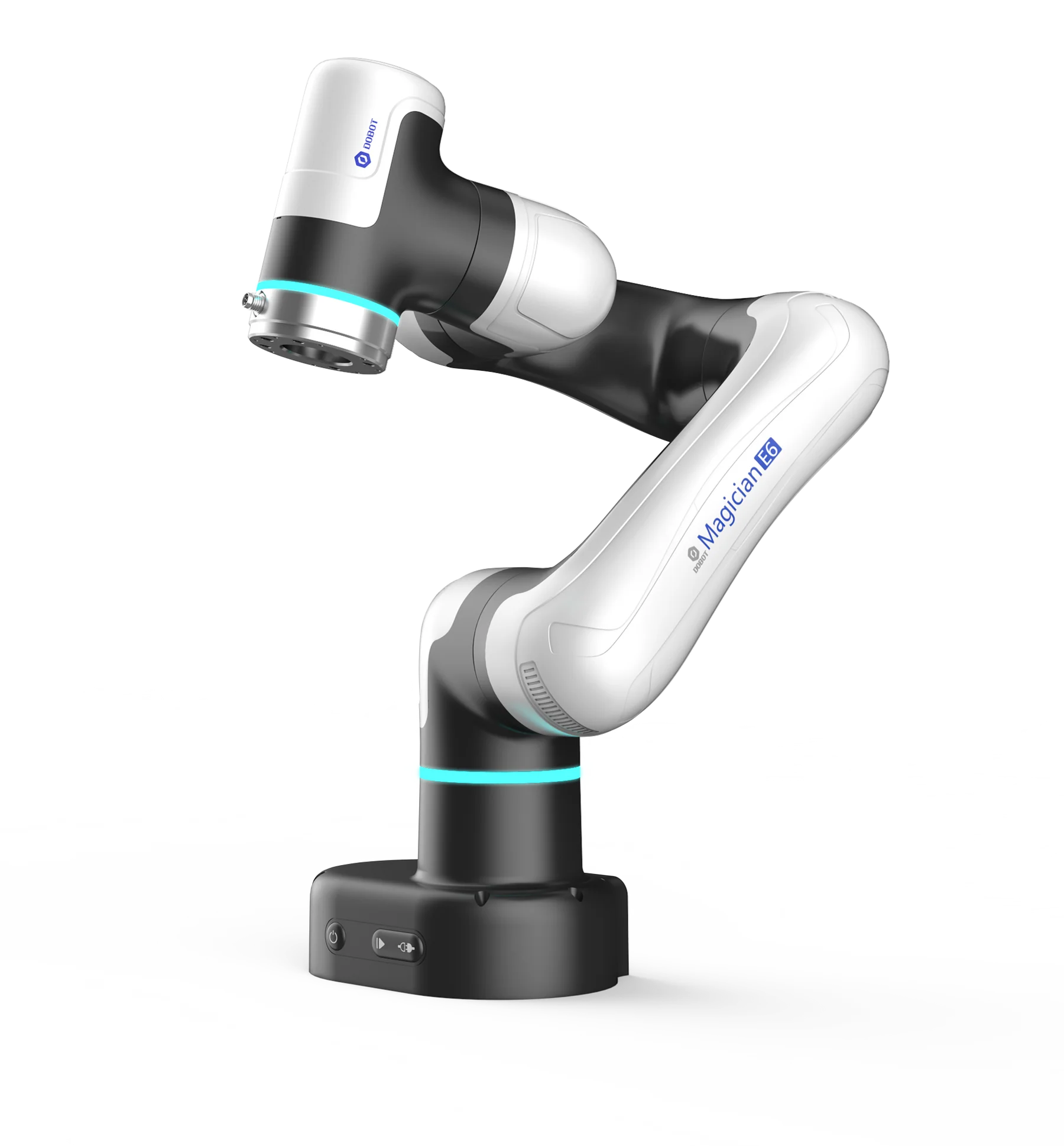

Dobot E6 Magician E6 6-Axis Robotic Arm
Original price was: $6,995.00.$6,895.00Current price is: $6,895.00.
Brand:
The Dobot Magician E6 is crafted to bridge the gap between learning and real-world applications. Designed specifically for education and scientific research, this desktop robot provides an interactive platform for students and researchers alike. Its compact size and advanced capabilities make it a prime resource for teaching complex concepts in AI, robotics, and smart manufacturing.
ADVANCED DESIGN AND SAFETY
Featuring a 6-axis design for complex movements and tasks, the Magician E6 ensures a high level of operational safety with its collision detection and indicator light ring. Its streamlined body is not only aesthetically pleasing but also enhances the user’s interaction with the robot.
SEAMLESS INTEGRATION
Deployment of the Magician E6 is straightforward, thanks to its built-in control box and compact design. Its desktop orientation allows for easy integration into various educational environments without the need for extensive setup or space.
USER-FRIENDLY INTERFACE
Dobot’s patented trajectory replay and graphical programming enable users to engage with the robot without in-depth coding knowledge. This approach to operation lowers the barrier to entry, making the Magician E6 an accessible tool for users at all levels of expertise.
SPECIFICATIONS:
| Specification | Detail |
|---|---|
| Number of Axes | 6 |
| Payload | 750g |
| Working Radius | 450mm |
| Repeatability | ±0.1mm |
| Maximum Speed of TCP | 0.5 m/s |
| Joint Speed | Up to 120°/s |
| Power | 100V~240V AC, 50/60 Hz |
| Rated Voltage | 48V DC, 5A |
| Power Consumption | 130W |
| Communication Interface | Ethernet 2, for TCP/IP and Modbus TCP communication |
| I/O Interface | Multiple DI/DO, Power interfaces at arm tip and base |
| Control Software | DobotStudio Pro |
| Base Dimensions | 162 mm x 120 mm x 103 mm |
| Working Environment | Temperature: 0° to 40° C, Humidity: 25 to 85% noncondensing |
| Noise Level | 60dB(A) |
| Installation Orientation | Desktop |
| Materials | Aluminum alloy, ABS plastic |
