Dobot Robot Workstation for MG400 and E6 (with Siemens PLC)

RICH FUNCTIONS
Use the system to teach robotic system calibration, trajectory tracking, communication and more. By combining with the workpiece models, tasks like object tracking, grabbing, inspection, transportation, palletizing and assembly can be carried out.

EASY OPERATION
By combining lightweight collaborative robot (works with CR3/E6/MG400) and flexible modular units, users can create automation tasks easily.

HIGH USABILITY
The system covers topics such as robotic system, robotic vision system and optional PLC modular system. Users can deal with the majority of automation tasks after learning. The Conveyor Belt Kit can be used independently with the robotic arm itself.

COLLABORATIVE ROBOT UNIVERSAL TRAINING PLATFORM

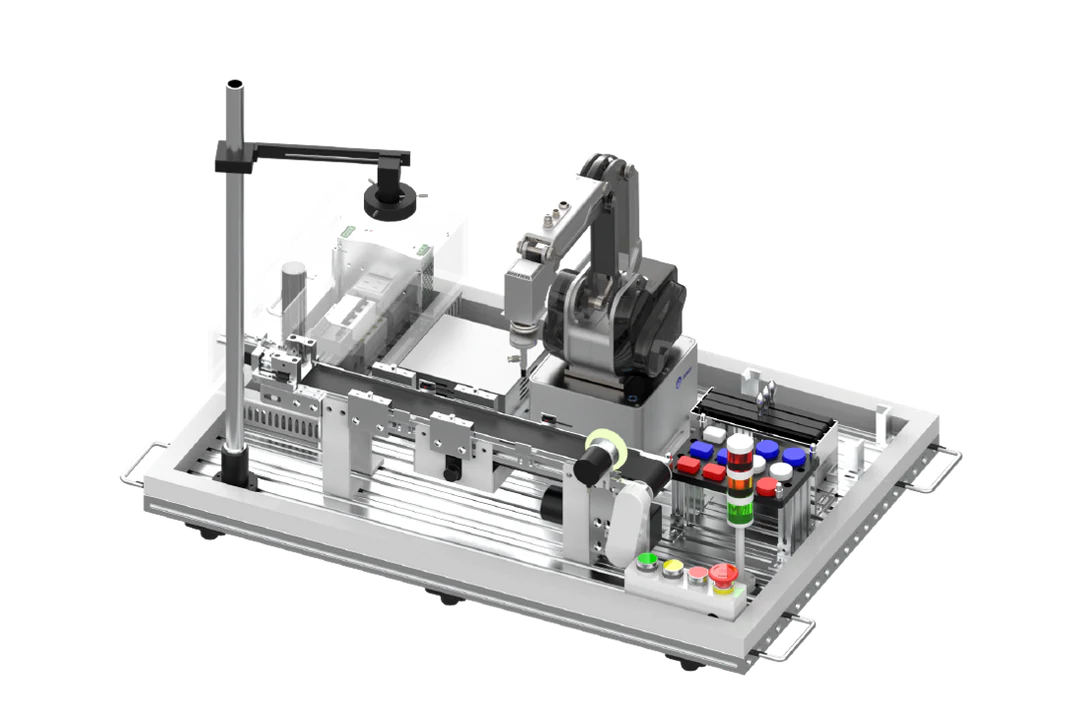

Collaborative Robot Universal Training Platform is a teaching platform for vocational schools and enterprise training which integrates a robot, control system, vision system, conveyor belt and other components. It adopts a modular design and can be combined flexibly and easily for automation simulation, such as object detection, grabbing, handling, palletizing, and assembly, as well as teaching projects such as robot system calibration, trajectory tracking, and communication control, helping students acquire skills related to smart robot systems, and improve practical and innovative capabilities effectively.

CORE UNIT
DOBOT ROBOT
Compatible with various DOBOT robots. Users can choose from the CR3, Magician E6 and MG400 for various needs in different application scenarios.

VISION KIT
Based on Dobot’s software and hardware vision platform, the system provides over thousands of image processing operators with a powerful visual analysis tool which can quickly create vision-based applications such as visual positioning, measurement, inspection and recognition and more for different project needs.

OPTIONAL PLC SYSTEM MODULE

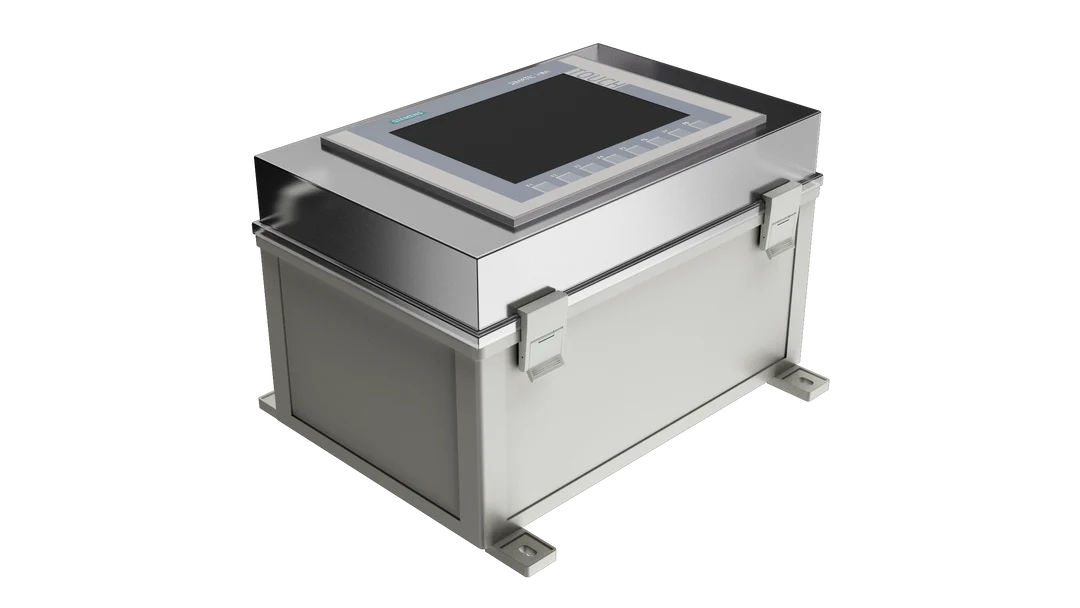

This module consists of a Siemens S7-1200 PLC, expandable I/O module and HMI touch screen. PLC system quick calibration and control can be carried out through the HMI which increases the device’s application efficiency and accuracy.

MINI VACUUM SOURCE
The Mini Vacuum Source is connectable to the robot with a I/O port to provide 70 to 110 kPa air supply. Tasks such as soft grabbing, transportation and more can be realized with the combination of suction cups.

CONVEYOR BELT KIT
The Conveyor Belt Kit is equipped with an electric actuator, object sensor and linear encoder to simulate automation in assembly line processes. By combining with the robotic arm, loading and unloading of materials, navigation and grabbing can be realized.

FUNCTION PLATES
There are several quick change plates in the function plate storage box. These include the track plate, standard inspection plate, guide assembly plate, mobile phone model location plate. They work alongside with robotic system and vision system for vision positioning, measurement, inspection and identification for various tasks such as tracking, grabbing, palletizing and assembly.

TOOL BOX
The tool box serves the purpose of storing loose components. With buffering and cushioning inside the box, items can be placed safely. There are workpieces, tools, robot adapter board, calibration needle, suction cup, screws, pipe and connectors inside the box.

SPECIFICATIONS:

Workstation Video:

DOWNLOAD DOCUMENTS:

Dobot_Work_Station_Training_Platform-compressed
