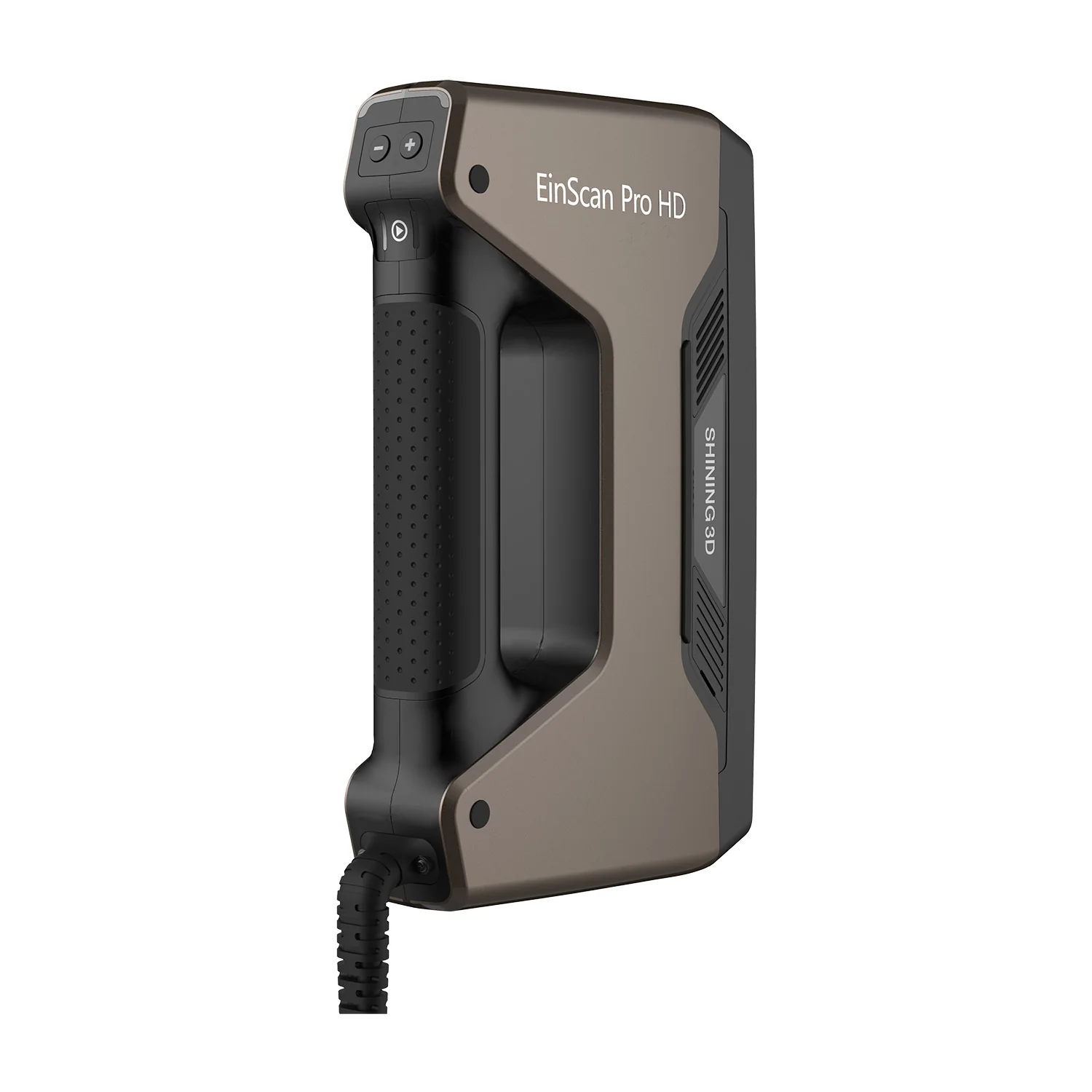

EinScan-Pro HD Bundle With Automated Turntable, Tripod, and Colour Camera
$7,699.00
Brand:
EinScan-Pro HD 3D Scanner Bundle
he EinScan Pro HD improves the efficiency of high-quality 3D modeling
· Impressive high resolution for fine details
· Handle dark or casting metal surface with less limitations
· Fast scan speed for high efficiency
The EinScan Pro HD inherited the multi-functional and modular design of the EinScan Pro series handheld 3D scanner. The 3D scanner delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience. It is a reliable assistant for designers and engineers who care about high quality 3D modeling.
IMPRESSIVE HIGH RESOLUTION FOR FINE DETAILS
By adopting a new structure light projection module, the stripe pattern scanning which was traditionally used in Fixed Scan Mode is now utilized to Handheld HD Scan Mode. With 0.2mm minimum point distance setting and optimized algorithm, brings high resolution and accuracy in handheld scanning as good as when using fixed scan.
LESS LIMITATION OF SCAN OBJECTS
With new lighting projection hardware and software algorithm, the EinScan Pro HD is capable to scan a wider range of objects of dark or black color and casting metal surface, enriching the capability for 3D scanning of materials.
FAST SCANNING SPEED AND DATA TRANSMISSION
EinScan Pro HD has a dramatic breakthrough in scanning capability, processing up to 3,000,000 points per second under handheld scan mode, and less than 0.5s for every single frame in Fixed Scan Mode. USB 3.0 provides high speed data transmission.
HIGH ACCURACY FOR HIGH QUALITY 3D MODELING
With multiple positioning methods, both scanner or object can be moved during scanning. It delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045mm+0.3mm/m.
MODULAR DESIGN FOR A WIDE RANGE OF APPLICATIONS BY MULTI SCAN MODES AND DATA ALIGNMENTS

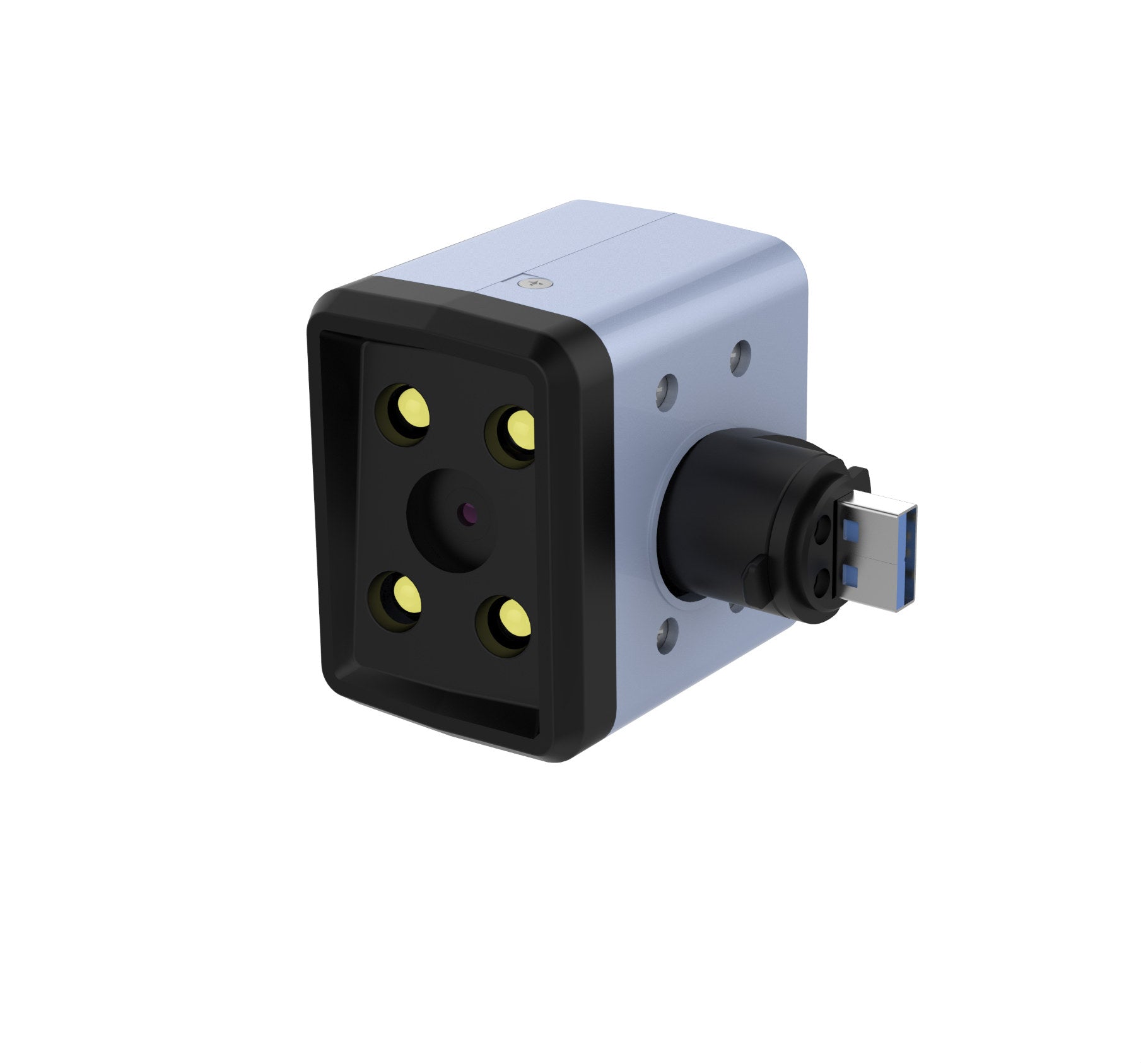

The modular designed Color Pack and Industrial Pack extend your scanning experience for more applications. Multiple positioning methods, including feature alignment, marker alignment, turntable coded targets alignment, manual alignment and texture alignment (with Color Pack ) , greatly enhance the scanning efficiency without additional preparation.
TAKE THE PORTABLE EINSCAN PRO HD ANYWHERE YOU GO
The light-weight, ergonomically-designed EinScan Pro HD is able to be taken anywhere. Easy plug-and-play lets you run the scanner without complex installation and the compact size allows scanner to move freely with unlimited scanning experience.
Lightweight
2.5 lbs (1.13 kg)
EXSCAN PRO SOFTWARE
Developed by SHINING 3D, ExScan Pro is a professional software for 3D scanning and data processing with a collection of both scan and mesh editing tools for generating high-quality 3D models.
- Clear work guide process
- User friendly interface
- Data post processing
- Data measuring
ACCURACY OF EINSCAN PRO SERIES SCANNERS
Factory tested accuracy according to VDI/VDE 2634 standards.
Specifications:
Download PDF Brochure for product details and specs.
