Einstar VEGA 3D scanner
$1,999.00
Brand:
,
Shining 3D
Einstar VEGA 3D scanner, handheld, wireless, color, infrared capture (1yr limited warranty)

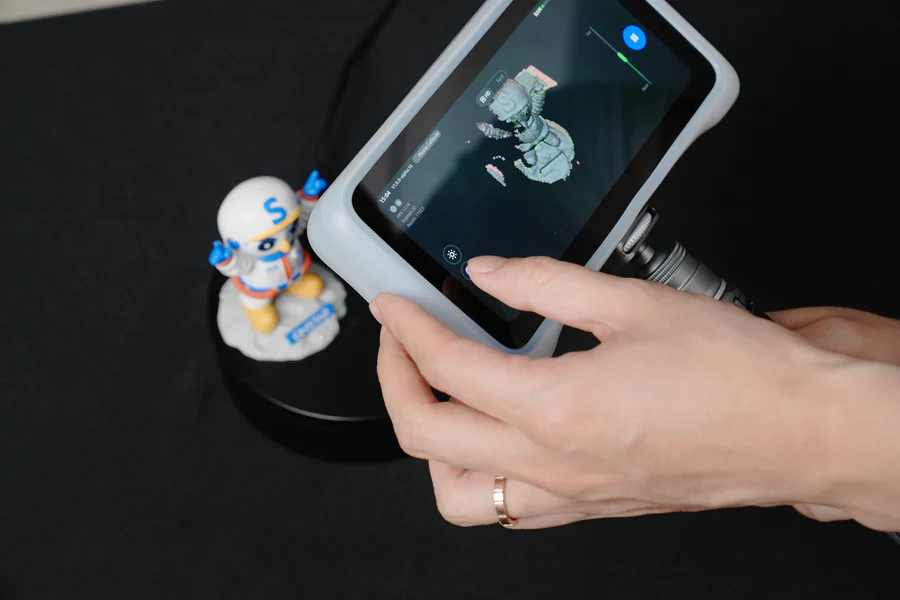

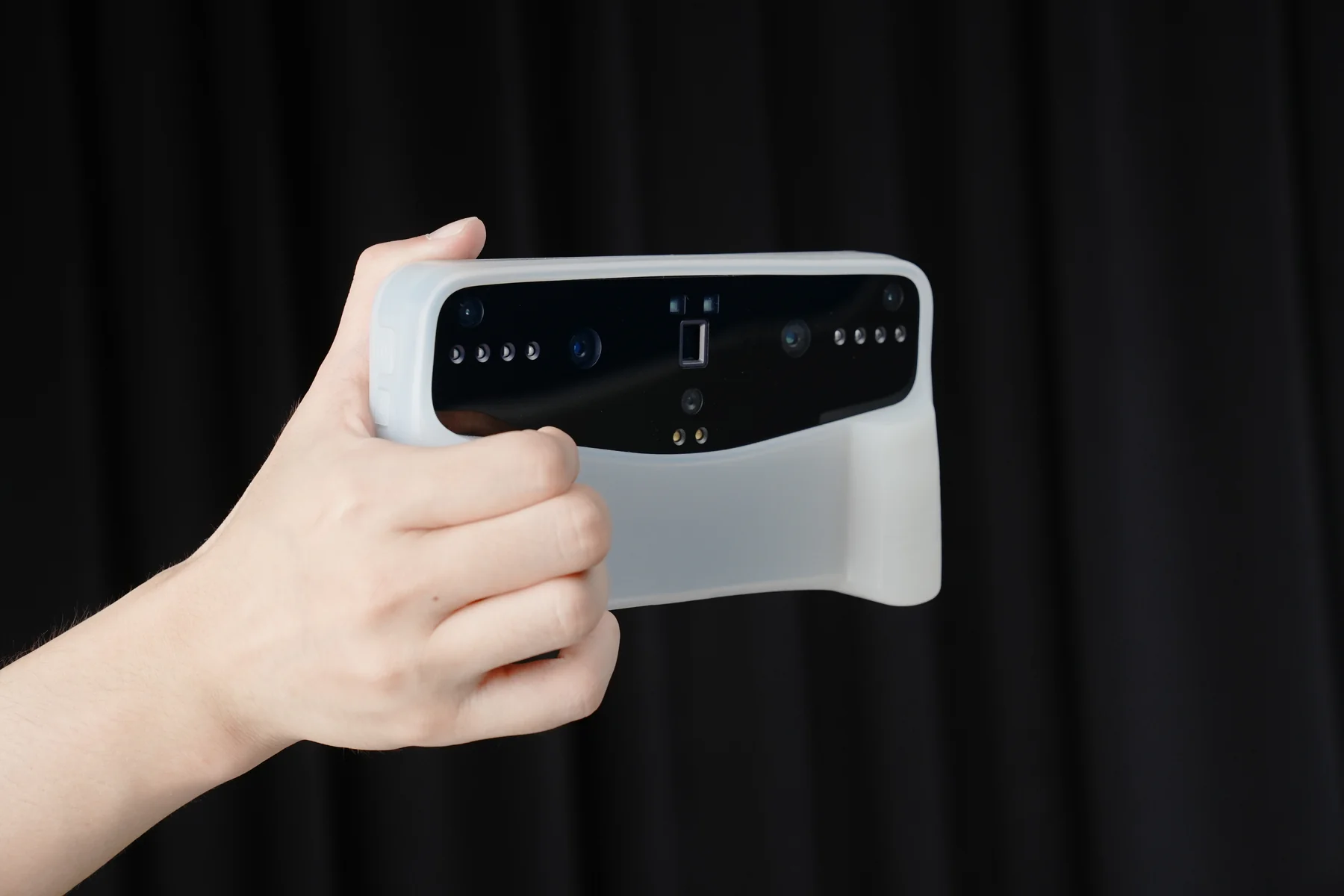

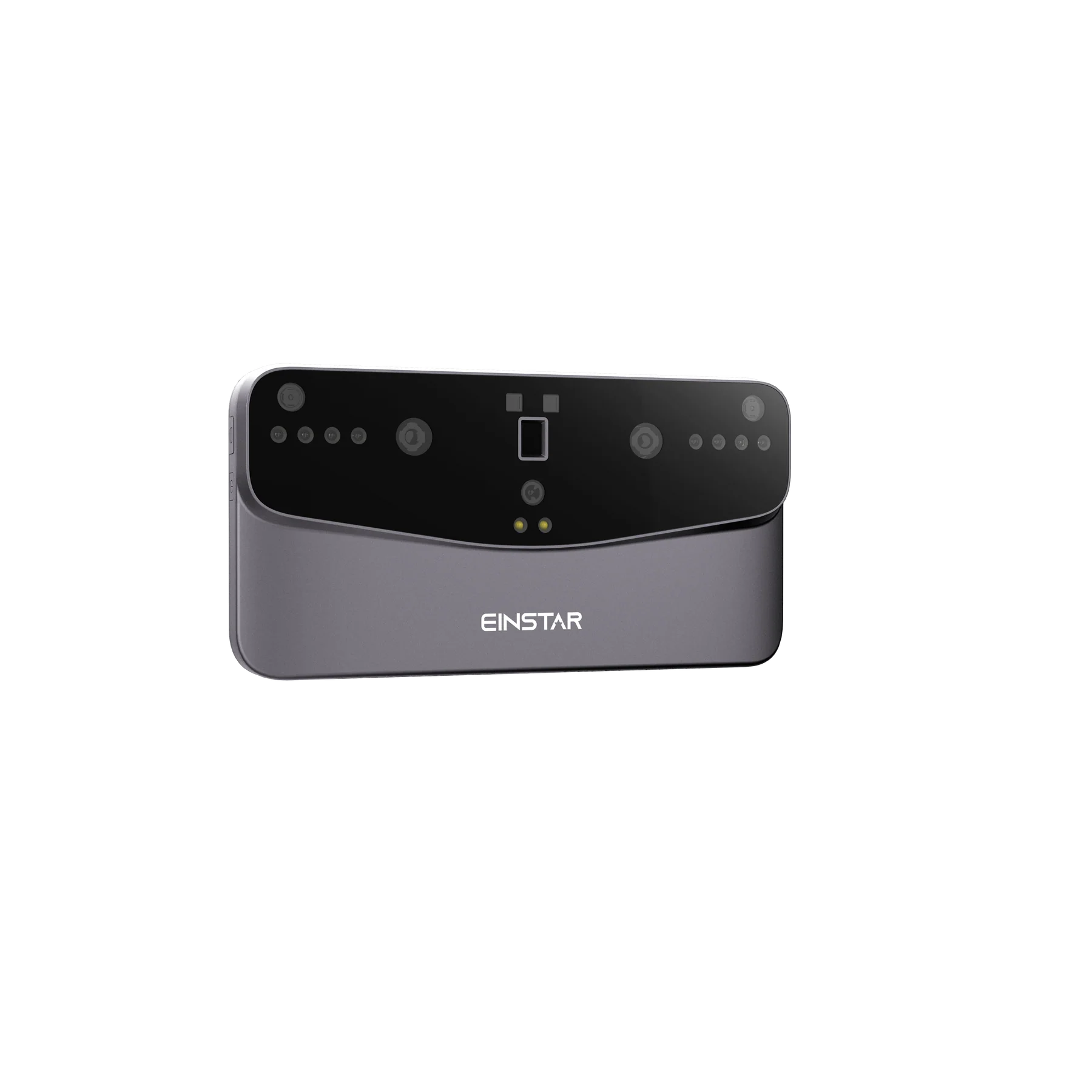

The Einstar VEGA is a wireless compact handheld 3D scanner for scanning both in high detail for smaller objects and long range for larger objects, making the Einstar VEGA a 2-in-1 3D scanner.
The built-in computing and wireless connectivity make the Einstar VEGA a truly portable device for the worksite, classroom, and museum environments. The VEGA scanner can even be used in outdoor environments due to its infrared light scanning technology.
Capture high-quality, life-like color images with the scanner’s 48MP camera.
Specifications:
| Scan Mode | HD Mode Fast Mode |
| Light Source | HD Mode: Infrared MEMS Fast Mode: Infrared VCSEL |
| Point Distance | HD Mode: 0.05mm~3mm Fast Mode: 0.5mm~10mm |
| Capture Frame | HD Mode: up to 15 fps Fast Mode: up to 20 fps |
| Working Distance | HD Mode: 100-250mm Fast Mode: 350-1500MM |
| IR Camera Resolution | HD Mode: 2MP Fast Mode: 1.3MP |
| Align Mode | Feature; Texture; Markers; Hybrid |
| Color Camera Resolution | 48 MP |
| Output Formats | ply; stl; obj; asc |
| Outdoor Scan | Yes |
| Scanner Body Weight | 535g |
| Scanner Size | 180mm*95mm*26.5mm (L*W*H) |
| CPU | 8-core CPU, 2.4GHz |
| RAM | 32 GB LPDDR4 Memory |
| Internal Hard Drive | 32GB eMMC+512GB SSD |
| Power Charger | 65W fast charging, supports PD/PPS protocols |
| Interface | Wi-Fi 6, USB Type C |

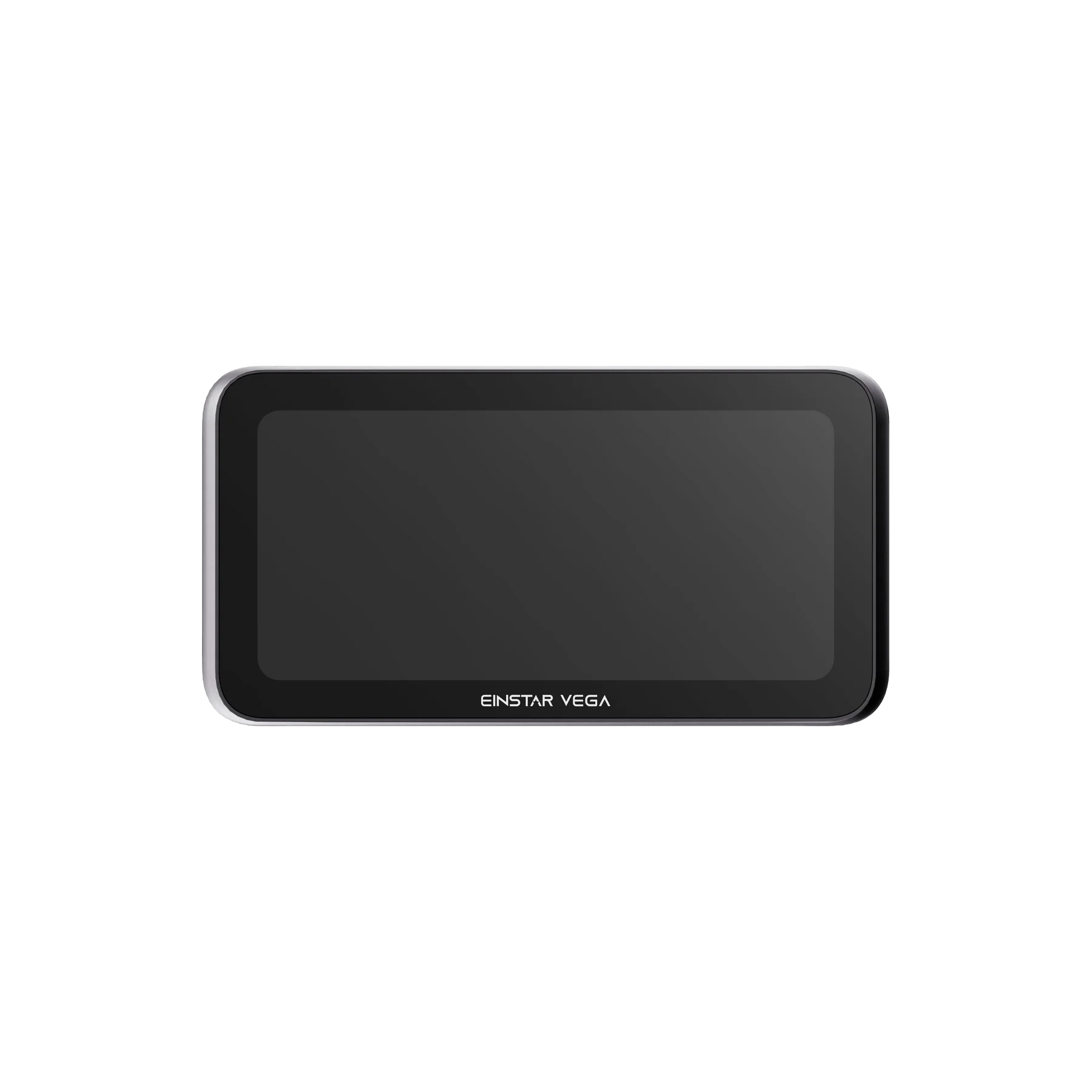

| Touchscreen | 6.4″ 2K OLED |
| Supplemental Light | 10 |
| IMU | 6 DoF |
| Operating Temperature Range | -10~40°C |
| Operating Humidity Range | 0 to 90% RH (non-condensing) |
| Packing Size | 380*305*155mm |
| Battery | Built-n 5000mAh; External power bank charging supported |
| Supported OS | No computer required for 3D scanning operation;
StarVision (Data processing program on PC) |
| Recommended PC Configuration | Intel i7 processor; 32GB RMA; MacOS 11.0 (on Apple chip) |
Einstar_VEGA-EN_20240904-V1.1-Brochure
