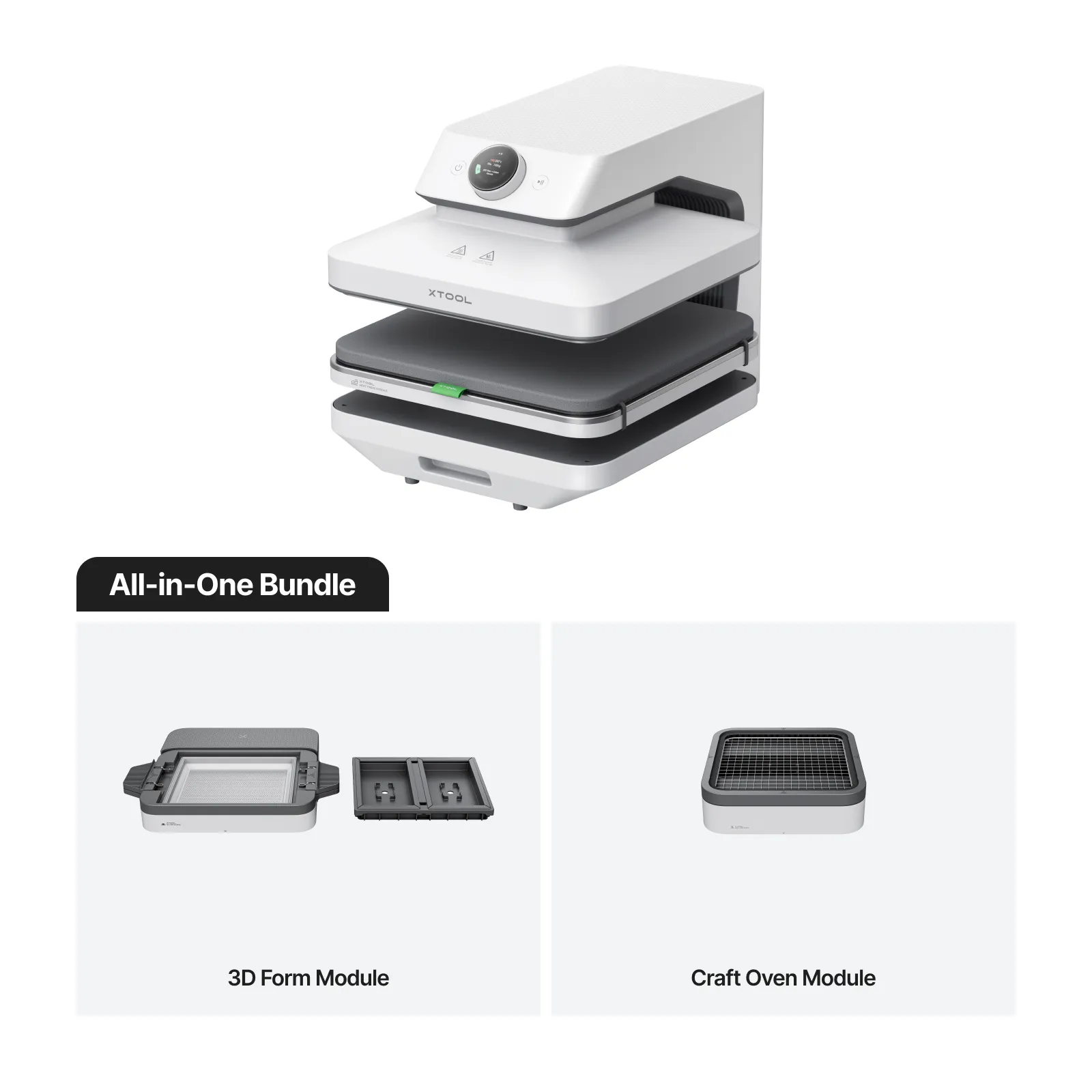

Bundle Includes:

• Heat Press
• Craft Oven Module
• 3D Form Module

In the box:

Specifications

Heat Press Module (Main Unit)

• Heat Platen Size:  15″ × 15″ (380mm × 380 mm) Large Platen
• Temperature Range:  80-210 °C (176-410 °F)
• Pressure Range:  44-220 lbs (20-100 kg) Precision Control
• Time Range: 1-999 s
• Input Voltage & Rated Power: AC 100-120 V, 1150-1650 W, 50/60 Hz
• Physical Dimensions & Weight: 16.5” × 21.6” × 16.5″ (418 mm × 549 mm × 410mm) | 48.5 lbs (22 kg)

3D Form Module

• Suction Power: Max -90 kPa (Industrial-grade Vacuum)
• Vacuum Forming Area: Up to 8″ × 10″ (203 × 254 mm) Film Sheets
• Max Forming Height: Up to 3.5″ (90 mm)
• Max Sublimation Area: Up to 4.8″ × 9″ (122 mm × 229 mm) Objects
• Physical Dimensions & Weight: 20.5” × 16.1″ × 4.2″ (522 mm × 410 mm × 108mm) | 15.9 lbs (7.2 kg)

Craft Oven Module

• DTF Curing Area: Up to 17″ × 17″ (432 mm × 432 mm) DTF Films
• Chamber Dimensions (W×D×H): 15.6″ × 6.2″ × 3.1″ (398 mm × 158 mm × 80 mm)
• Air Filtration: Built-in 3-Layer Filter (H11+ Carbon + H13 HEPA)
• Physical Dimensions & Weight: 18.3” × 18.3″ x 5.5” （465 mm × 465 mm × 140.7 mm) | 9.7 lbs (4.4 kg)

Smart Control & Safety

• Display & Controls: 1.8″ (45.7 mm) Vivid Screen + Intuitive Rotary Knob
• Software Support: xTool Studio App (Massive Cloud Presets Library)
• Built-in Custom Presets: 35 Smart Built-In Custom Presets for Instant Offline Creation
• Safety Features: Auto-Standby, Slide-Out Design (Away from Heat Source)

Outlook & Storage

• Body Material: PC/PBT
• Color: White
• Storage Temperature: -4 °F – 140 °F (-20 °C – 60 °C)
