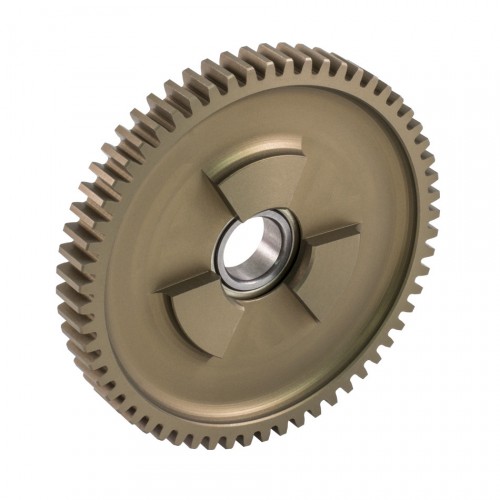

44t Dog Gear with 0.500in Bearing (217-3418)

44t Dog Gear with 0.500in Bearing

20 DP, Ball Shifter & Dog Gears (1 of 9 choices)

VEXpro offers an assortment of gear types, chosen to provide the greatest versatility of gearing options to users. Our sizes were specifically chosen to provide a wide spread of of ratio options useful for FIRST ® Robotics Competition designers. Larger size VEXpro gears are available so designers can accomplish their entire reduction in a single stage where otherwise they would have used more than one!

All VEXpro gears are 20DP with 14.5 degree pressure angle, and have the same overall width -- this means it is easy to interchange VEXpro gears in your design to change a ratio without modifying the overall system; true versatility.

Ball Shifter gears include cutouts for the VEXpro Ball Shifter

Dog gears include cutouts for the WCP DS gearbox

All options:

• 34T Ball Shifter Gear with Bushing (20 DP, Ball Shifter) P/N 217-3212

• 44t Aluminum Spur Gear (20 DP, Ball Shifter) P/N 217-2709
• 50t Aluminum Spur Gear (20 DP, Ball Shifter) P/N 217-3219
• 54t Aluminum Spur Gear (20 DP, Ball Shifter) P/N 217-3222
• 60t Aluminum Spur Gear (20 DP, Ball Shifter) P/N 217-2713

        Dog Gears

• 40t Aluminum Spur Gear (20 DP, Dog, 1/2" Bearing) P/N 217-3417
• 44t Aluminum Spur Gear (20 DP, Dog, 1/2" Bearing) P/N 217-3418
• 50t Aluminum Spur Gear (20 DP, Dog, 1/2" Bearing) P/N 217-3419
• 60t Aluminum Spur Gear (20 DP, Dog, 1/2" Hex Bearing) P/N 217-3420

Can't tell a 40T gear from a 42T, but don't want to count the teeth? The VEXpro Gear Reference guide contains 1:1 outlines of all VEXpro gears for quick identification.  Click here to download the VEXpro Gear Reference Guide. Note: Calibrate your printer scaling by printing the first page and checking the 1" line in the bottom right.
