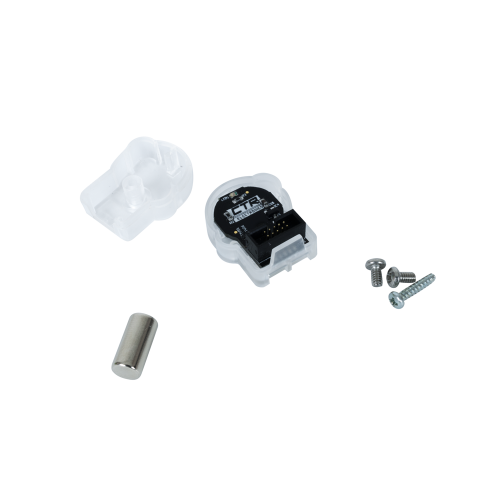

SRX Mag Encoder (217-5049)

The Cross the Road Electronics SRX Mag Encoder is a rotary sensor that can be used to measure rotational position and velocity. The device senses the magnetic field of a diametrically polarized magnet to determine rotational position with 12 bit precision. The device provides both a Quadrature interface that may be used for relative position measurement and a Pulse Width Modulated output for absolute position measurement. The device connects directly to the Talon SRX data port and is directly supported in the Talon SRX firmware.
